PCU 5KVA 48V

Amaze Solar PCU is a product of Long Last Power Technologies, the fastest emerging brand in power back-up solutions in India. An inverter with unmatchable performance that is ideal for residence, small commercial establishment.

Capacity: 5 KVA /48V
Rated AC power: 230V (single phase)
Charge Controller - PMW
Max supported panel power: 5000 Wp

MRP: ₹95,000Inclusive of all taxes

Quantity:

Enquiry Now

Expected Delivery in 5-7 Business Days.

Capacity

5 KVA /48V
Technology

Pure Sine Wave
Dimensions

30 x 41.7 x 41.5 CM
Warranty

36 Months

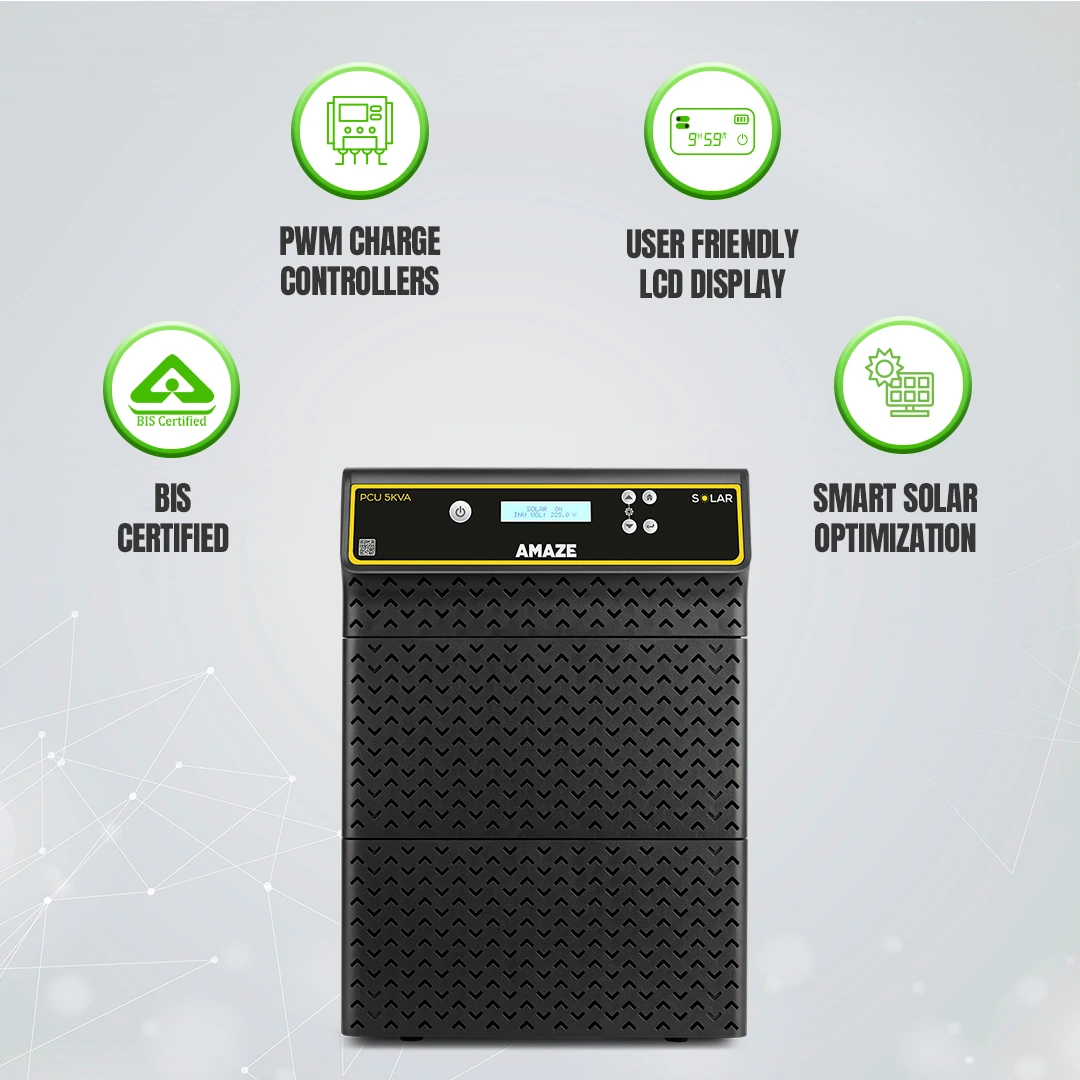

Feature:

PWM charge controllers.
Gives priority to solar in both backup and charging mode of operation thereby maximizing solar energy utilization.
Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
PCU 5kVA/48V is a BIS certified solar inverter as per IS/IEC standards which is mandatory for all solar inverters.

Specifications
Model	PCU 5KVA 48V
Range Name (Solar)	PCU
VA Rating	5 KVA
Output Waveform	Sine Wave
Warranty	36 Months
Net Weight (kg)	38 kg
No. of 12V Batteries in Series	4
Technology (Solar)	With Battery
Max. Supported Panel Power (Wp)	5000Wp
Nominal Battery Bank Voltage	48V
Input Voltage Range (Voc)	120V + 5V
Product Quantity	1N (One Number)
Contents	1 N Inverter, 1 N Warranty card
Warranty Details	36 Months (For detailed terms and conditions of warranty, please refer to the warranty card supplied along with the product)
Country of Origin	Made in India
Marketed By	Longlast Power Products Limited, Plot No. 94, Sector-5, Pocket N1, Bawana, Delhi 110039
Transfer Time	<20ms
For Consumer Complaint	Longlast Power Products Limited, Plot No. 94, Sector-5, Pocket N1, Bawana, Delhi 110039, Ph.: 9999933039, Email: care@amaze-india.com
